04 OSA9679 A Frame Trolley 2500kg WLL
Description
•2500 kg Capacity
•Two Eyelets Allows for Pick Up by an Overhead Crane

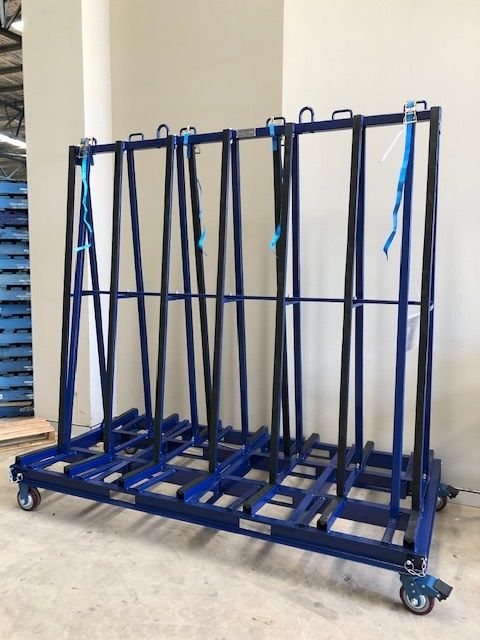

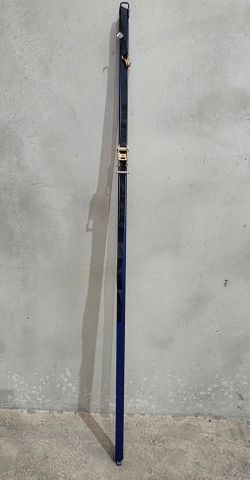

This One Stop A-Frame is a sturdy structure, designed to eliminate any risk of tipping over. Glass is placed on a special rubber profile and secured with four ratchet securing bars. This Rack has built-in slots on all sides for forklift transport.
Four 6" (152 mm) heavy-duty removable castors are included. Contains an extra storage section in the center section , which is ideal for storing the castor wheels once removed. These wheels are simply removed by removing the locking pin by hand .
These frames are ideal for storing and moving glass,stone and other large bulky materials around the factory , on a vehicle or on a jobsite.
LENGTH: 2400mm
WIDTH: 1200mm
HEIGHT: 2385mm
LOAD HEIGHT: 2000mm
LOAD LEG LENGTH: 350mm
WEIGHT OF FRAME : 224KG
LOAD CAPACITY FROM EYELETS : 2500KG
LOAD CAPACITY WITH WHEELS : 2000KG
LOAD CAPACITY WITHOUT WHEELS : 4000KG
Assembly may be required if being shipped to your location.
Erect frames can be picked up from our warehouse in Wetherill Park
